7-14s JBD / LLT Bluetooth Smart BMS (JBD-SP14S004)

$23.00Price
Excluding Sales Tax

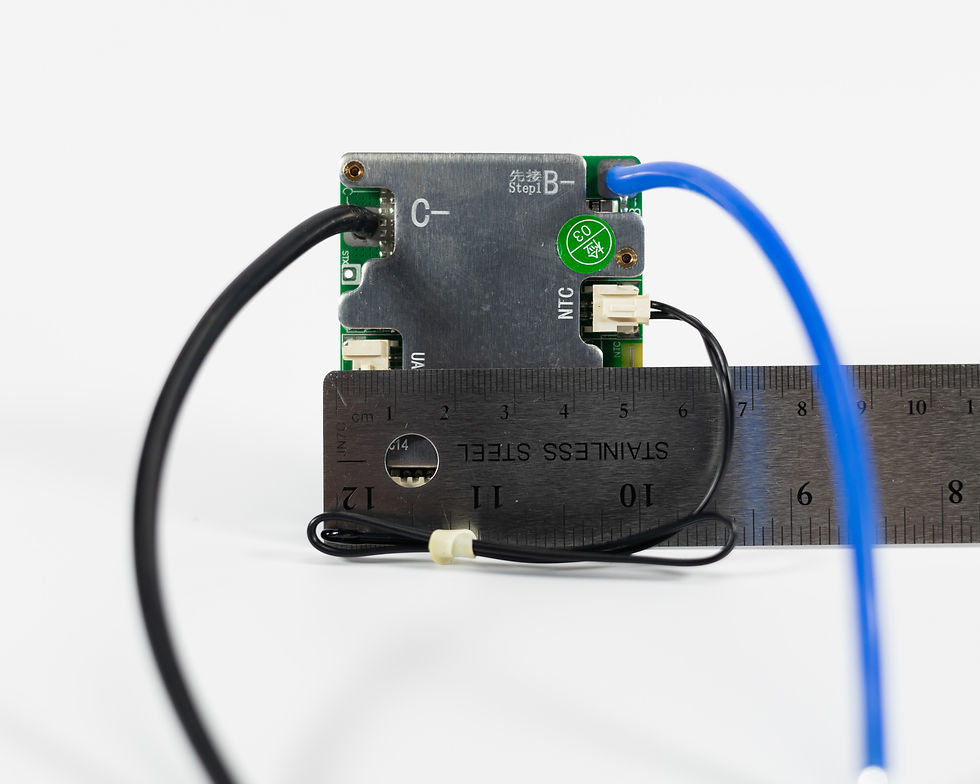

The JBD/LLT 14s smart BMS is an awesome addition to any battery build. This smart-detecting BMS can automatically range (when wired according to the instructions) between 7 and 14s. This allows for use in a wide variety of builds and use-cases. In addition, this is one of the smallest 14s bluetooth BMS's on the market. Measuring in at just 63 x 52 x 12mm, it offers a ton of features in a tiny package. This is the latest in the JBD offering, with one thermistor, and an on-board BT module, unlike the old versions with the attached dongle.



Through the common discharge port, this model supports 20A of discharge, and up to (30a) charging, according to the spec sheet. Use at your own risk.



JBD also offers a UART dongle where you can attach and communicate with the BMS, but that is not included here.

  • Model No: JBD-SP14S004 V1.4

    Discharge Current: 20A

    Charge Current: 30A*

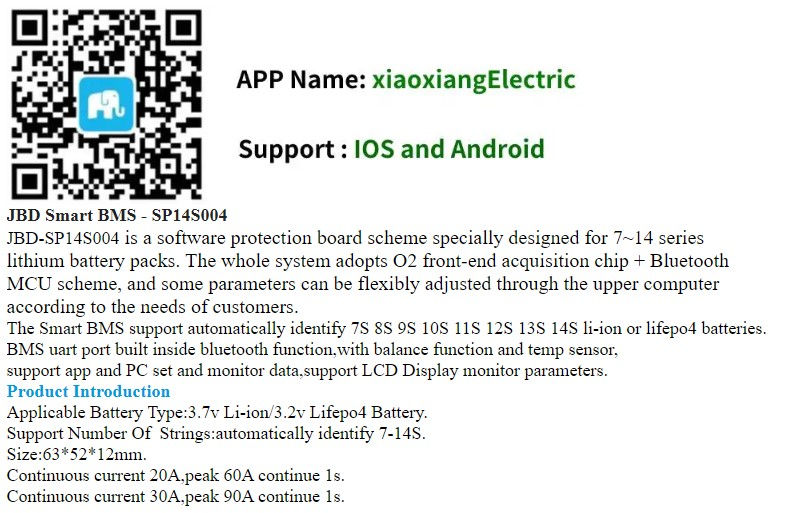

    BMS Type: Smart BT (XiaoXiang app, or Overkill Solar)

    Voltage Support: 7S-14S

    Size: 63x52x12mm

    Common Charge / Discharge Leads: 12AWG

    *untested personally
